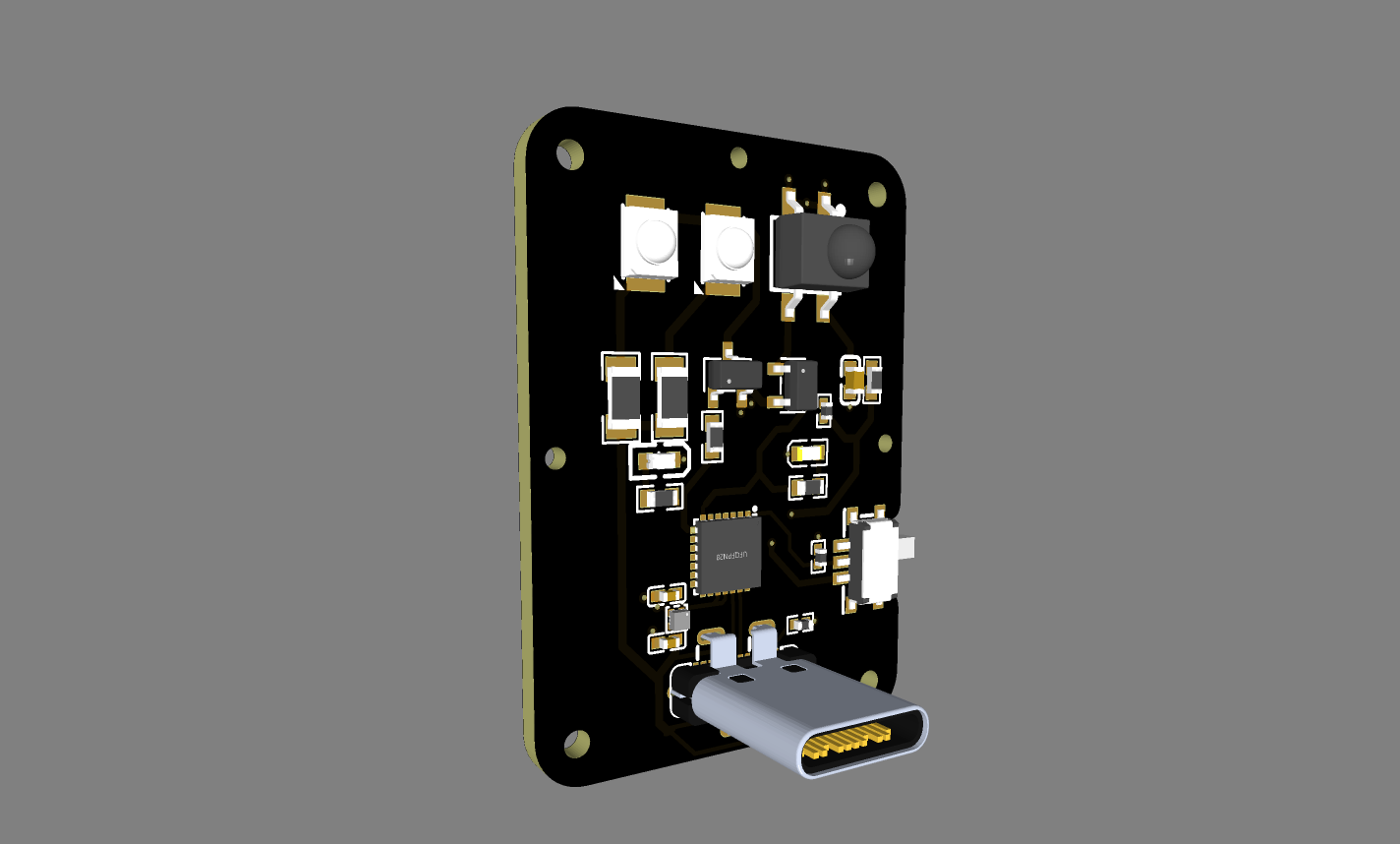

Infrared Waver is a low-cost IR board based on the STM32F042 (48 MHz) with crystal-less native USB 2.0. It features two IR LEDs and an IR receiver for working with infrared remote controls. With the EMWaver app you can record, analyze, and replay IR signals to replicate compatible remotes. It communicates over USB (no BLE), intended for Android (USB OTG) and the desktop EMWaver app. Bonus: the native USB stack also enables USB device emulation.
IRSTM32F042USB
MCU
STM32F042
Design date
2024-08-24
Reproduction cost
$36 / 5 units
Build files
Open the build resources for this device on GitHub. Exact file links can download directly from the hardware repo; otherwise the buttons open the repo or the relevant build folder there.

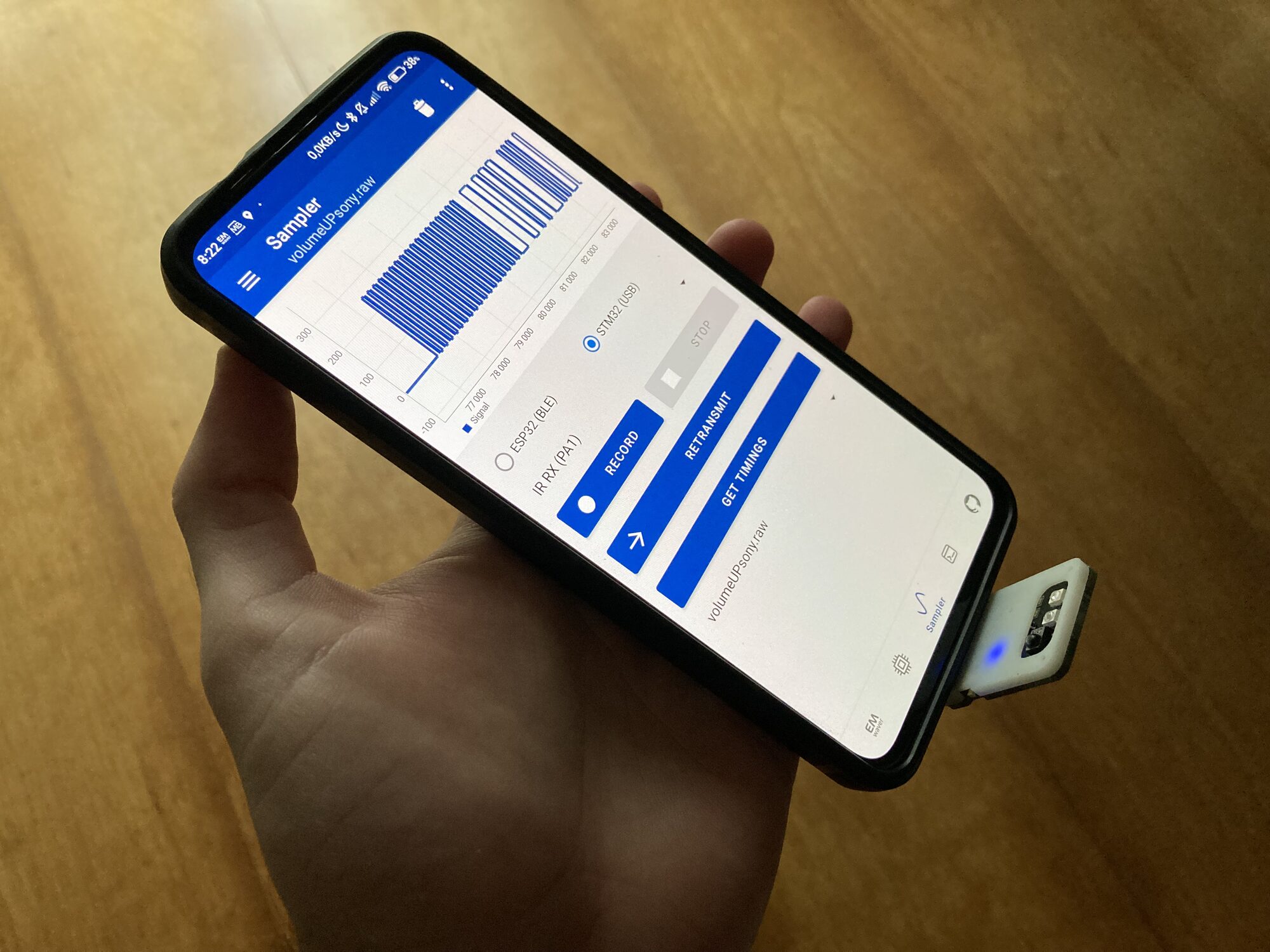

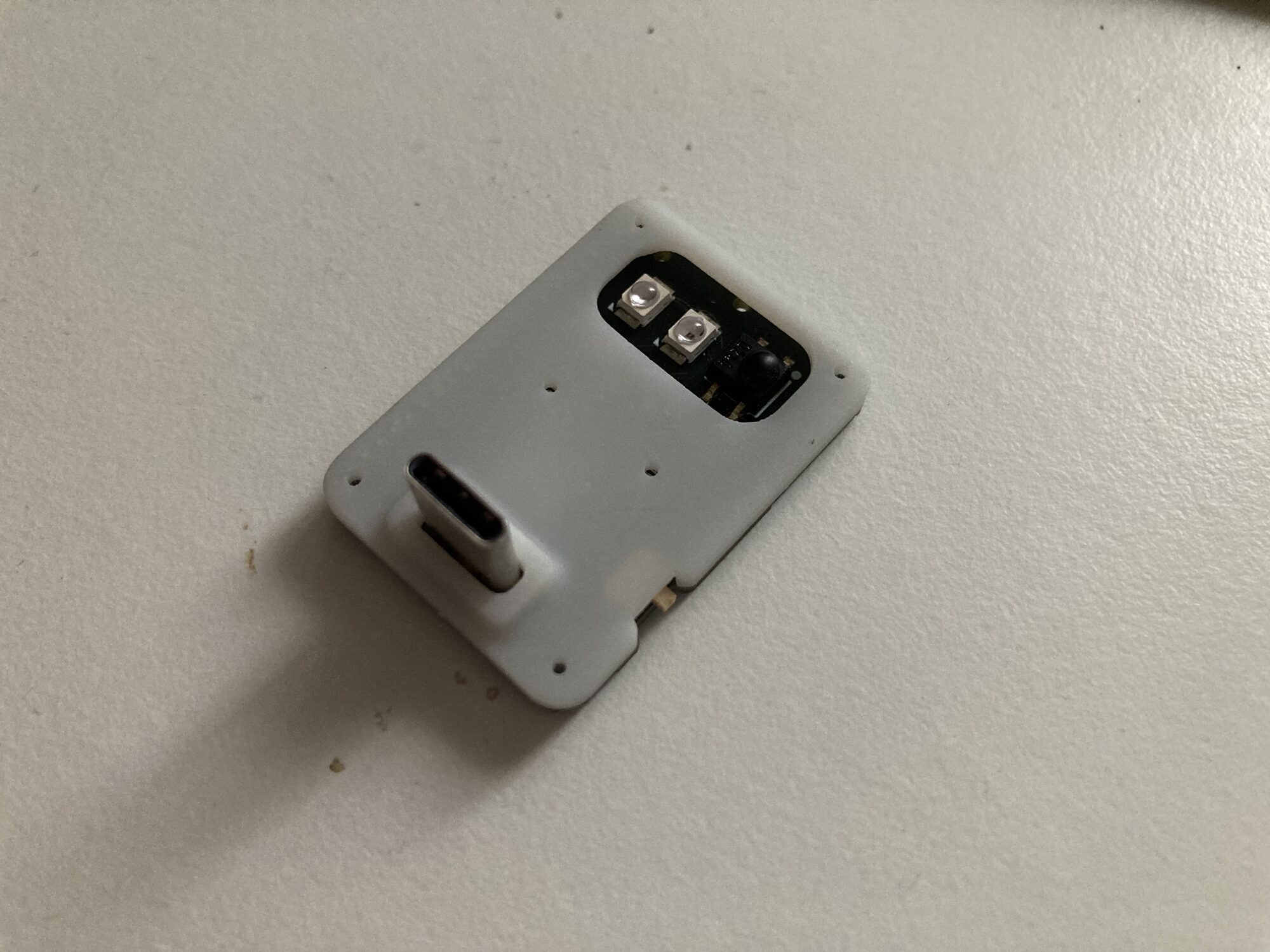

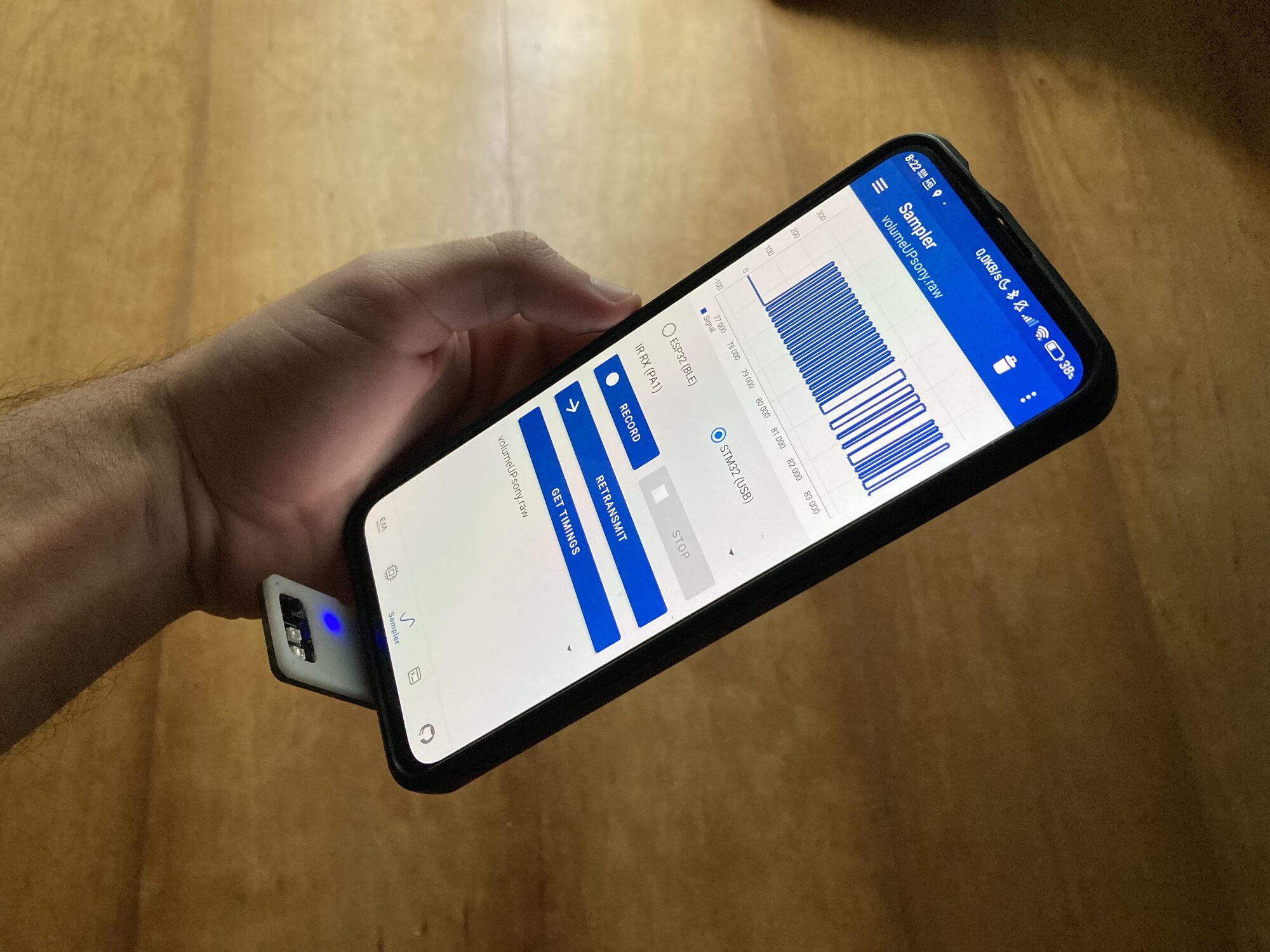

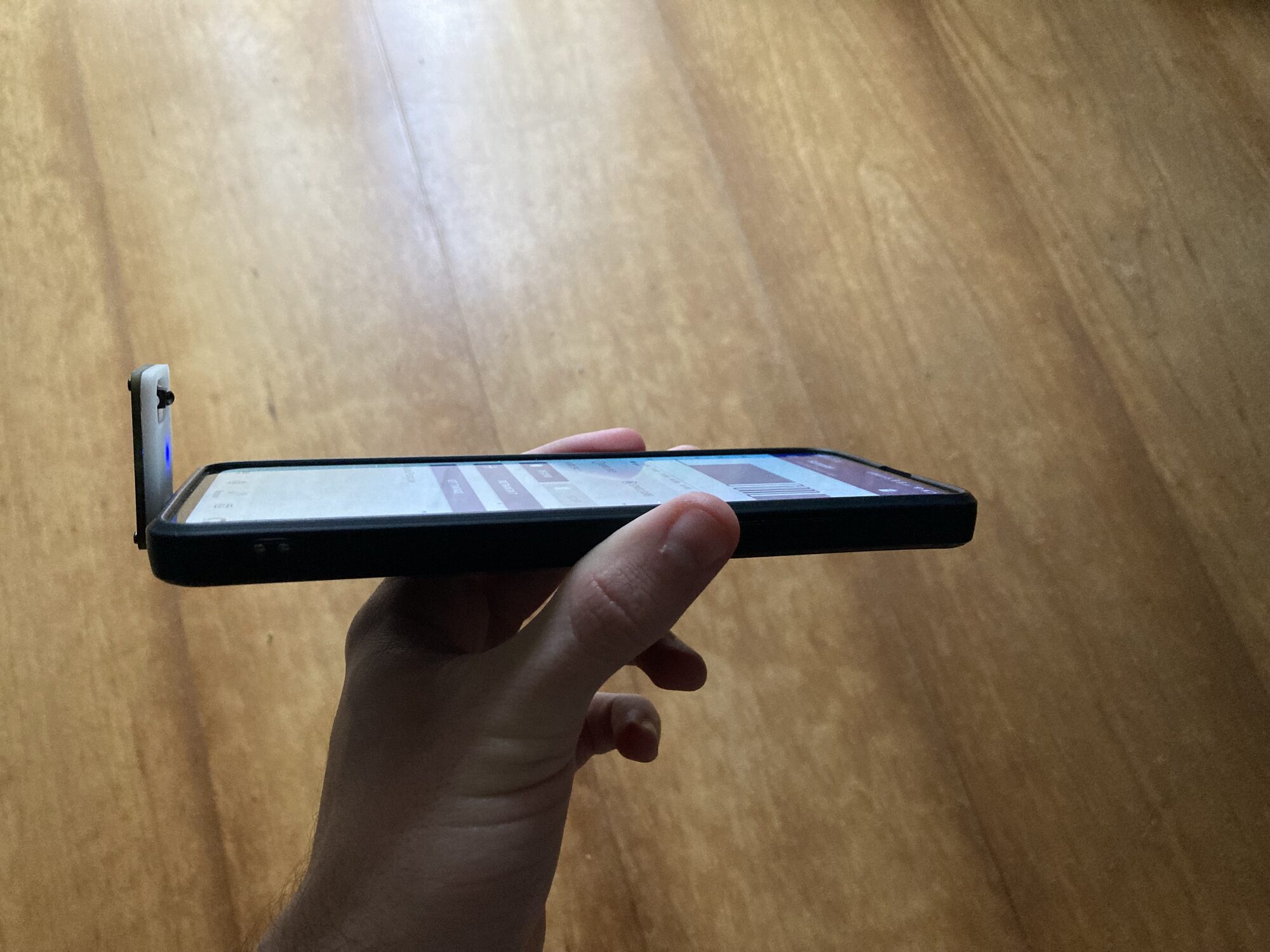

Device preview
Historical enclosure and device imagery kept with this hardware entry.
